Upper and Lower Door clips for PDLC Films on Commercial Glass Doors

Upper and Lower Door clips for PDLC Films on Commercial Glass Doors

Designed specifically for commercial glass doors equipped with PDLC Smart Films, this floor spring delivers smooth, stable door motion while protecting film wiring and electrical connections. Its enhanced load capacity and precise opening control ensure long-term reliability in high-traffic environments. Compatible with various PDLC door configurations, it provides a clean, streamlined installation with excellent durability and safety performance.

Key Features:

Applicable Door Leaf Size : 800–1200 mm

Load Capacity : supports up to 100 kg

Maximum Opening Angle : Up to 116°

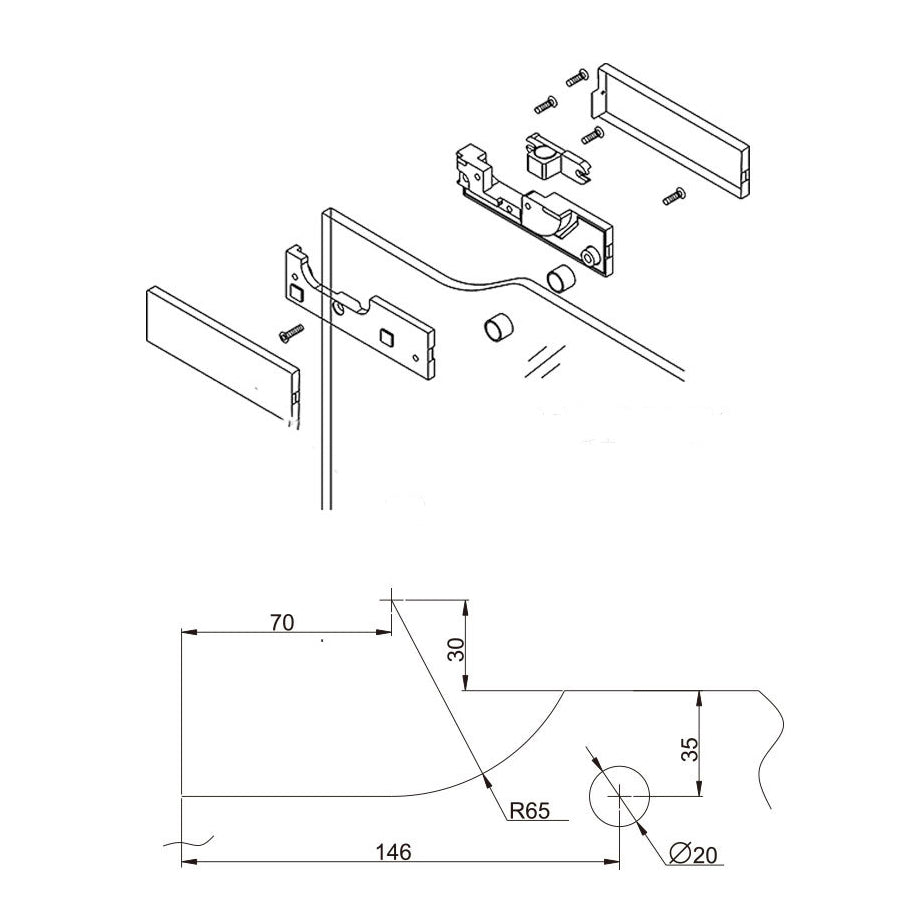

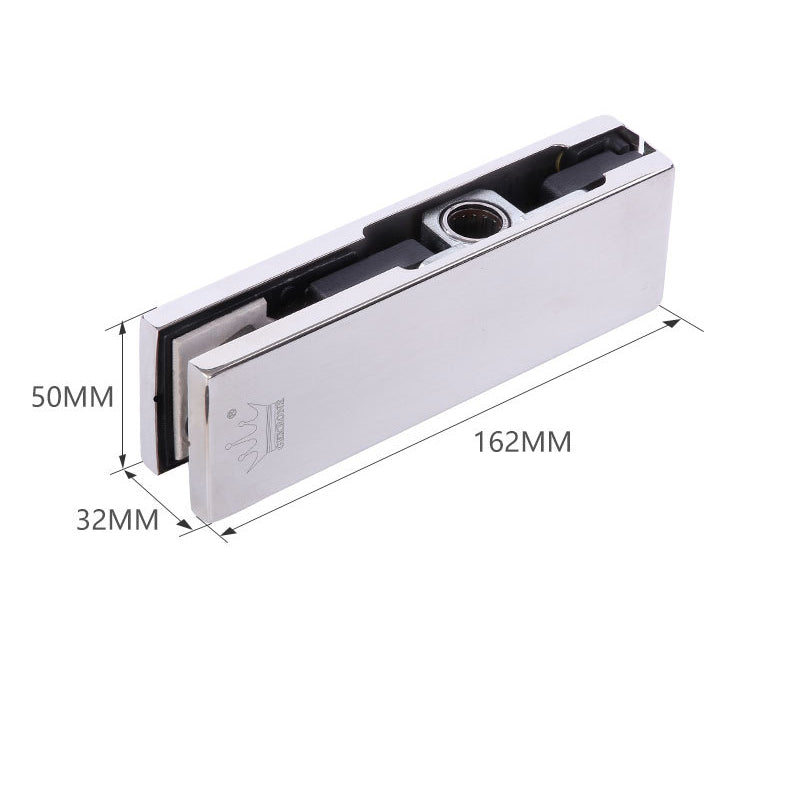

Dimensions : Upper Clip 162 x 32 x 50mm

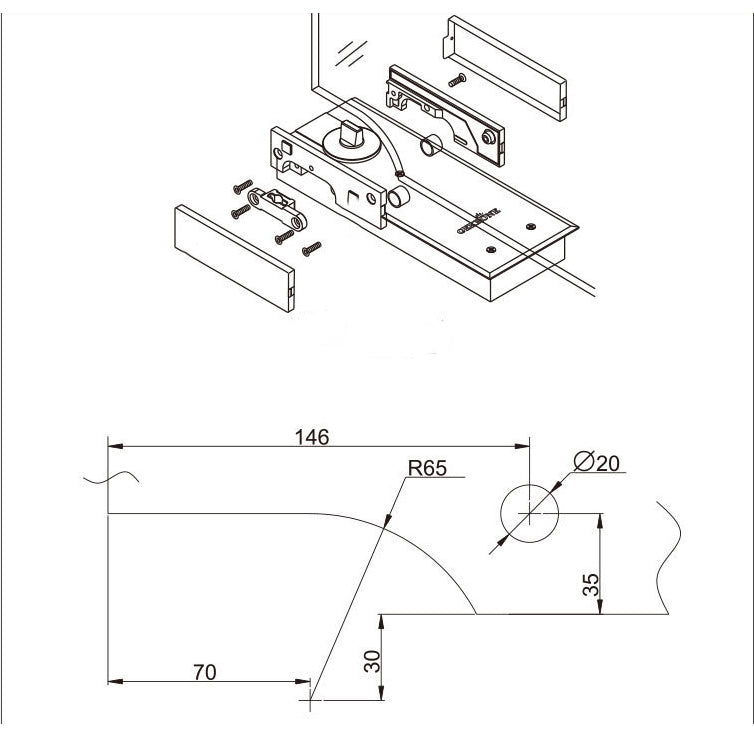

                       Lower Clip 162 x 32 50mm

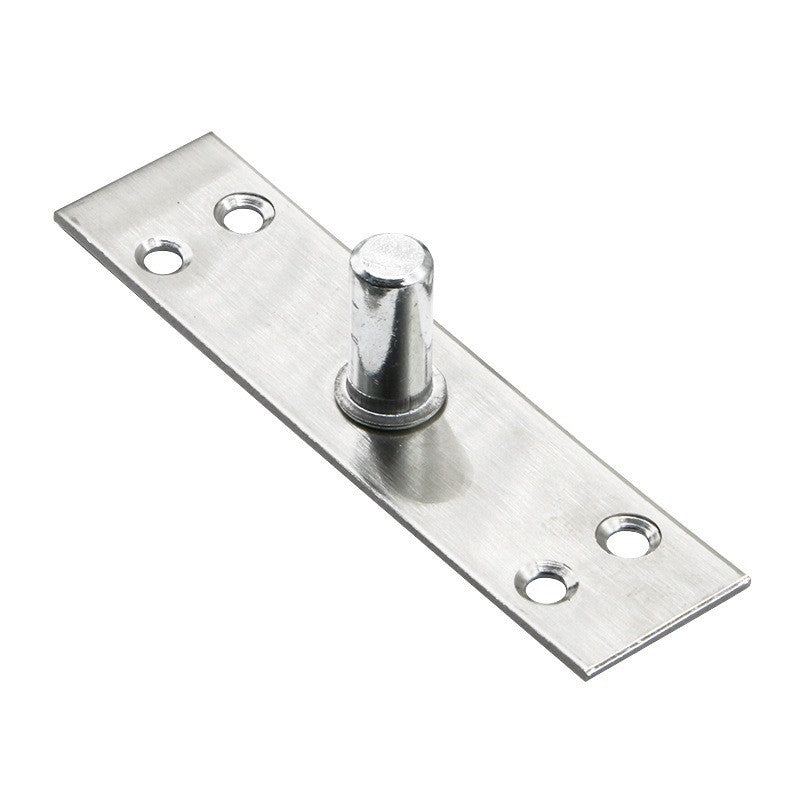

This package contains upper clip x1, lower clip x1 and upper shaft x1

Material : Stainless Steel

Package Weight : 3.8kg
