1 mm
Thickness
10 %
Visual Transparency
10 %
Energy Saving
The Future of Media Display

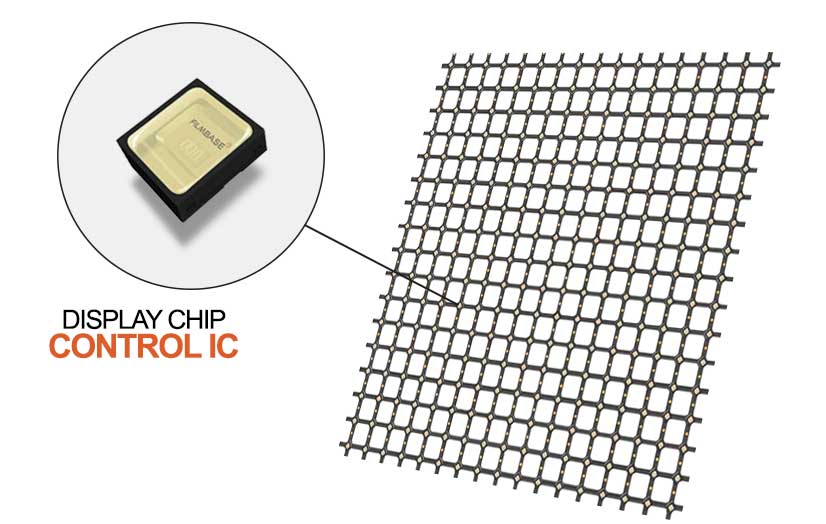

Filmbase LED Film transforms glass into high-resolution digital media displays, perfect for curtain walls, storefronts, and exhibition spaces. With HD transparency, low power use, and long lifespan, it delivers vibrant visuals without blocking natural light. The integrated design—featuring display chips, control ICs, and cooling systems on a mesh PCB—ensures better heat dissipation and clarity. Easy to apply or laminate, it turns buildings into dynamic media surfaces for advertising, branding, and real-time content.
The Future
of Media Display
Product Features
Adjustable Brightness
Pixel options with 3000cd/m² standard, 5000cd/m² highlight, and 7000+cd/m² custom brightness
Ultra Thin
The LED are hidden, and the conventional front and rear flat films are <2.5mm. Ultra-thin customized front and rear flat film <1.5mm.
High Transparency
About 50-90% physical transparency with different point spacing and a reasonable viewing distance of 99% visual transparency.
CROP STITCHING
The signal is transmitted in a straight line to ensure that the screen can be cut and spliced.
Easy to install
Lightly paste the film on the glass, separate the controller and install it.Plug connection and installation is complete.
non-destructive repair
The protective film is easily replaceable to keep the screen looking new; damaged film can be swapped on-site.
Product Applications

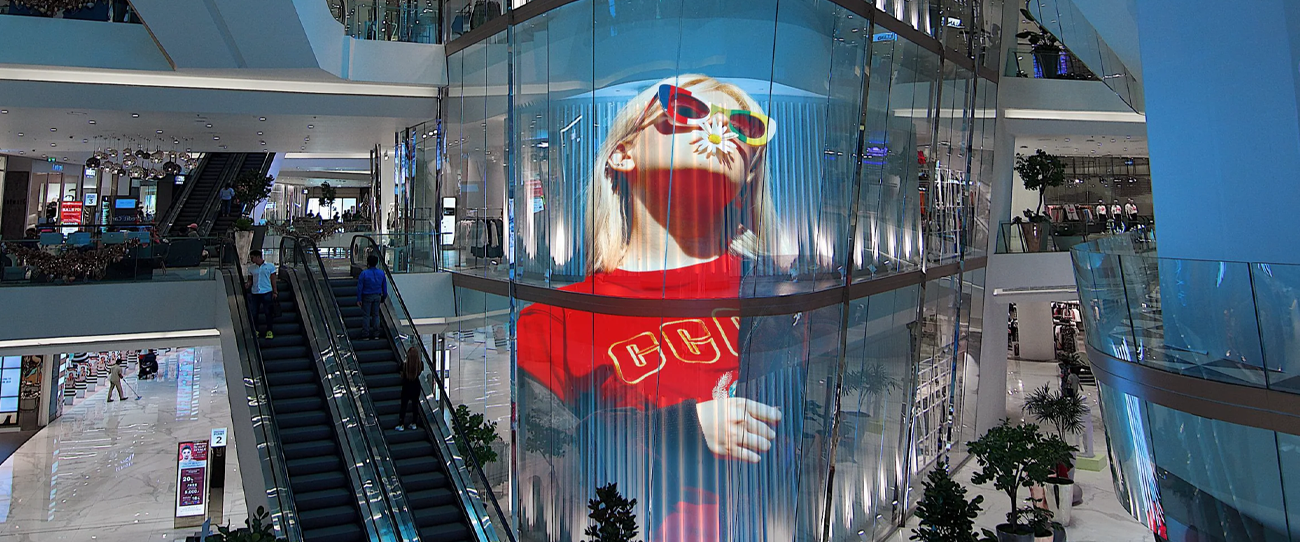

Retail & Commercial
- Storefront windows
- Shopping malls
- Display cases
Hospitality
- Hotel lobbies
- Restaurants & bars
- Casino floors
Architecture & Real Estate
- Glass curtain walls
- Building façades
- Showrooms
Transportation
- Airport terminals
- Train stations
- Parking structures
Events & Entertainment
- Concerts
- Trade shows
- Theme parks
Healthcare
- Clinic entrances
- Waiting rooms
- Private glass walls
Education & Museums
- Interactive exhibits
- Campus glass walls
- Libraries
Media & Advertising
- Transparent billboards
- Studio backgrounds
- AR/VR displays
Product Models & Specifications
| Products | Pitch | Brightness | Transparency | Pixel Pitch | Module | Density | View Distance | Angle | Avg Power | Max Power |
|---|---|---|---|---|---|---|---|---|---|---|
| Invisible 01 | P3.9 | 0~5000 | ≥90% | 4x4mm | W240xH1500 | 62500 | ≥4m | ≥160° | 230W | 650W |
| Invisible 02 | P4.9 | 0~5000 | ≥90% | 5x5mm | W240xH1500 | 40000 | ≥5m | ≥160° | 230W | 650W |
| Invisible 03 | P5.9 | 0~5000 | ≥95% | 6x6mm | W240xH1500 | 27556 | ≥6m | ≥160° | 230W | 650W |
| Invisible 04 | P7.9 | 0~5000 | ≥95% | 8x8mm | W240xH1500 | 15625 | ≥8m | ≥160° | 230W | 650W |
| Invisible 05 | P10 | 0~5000 | ≥95% | 10x10mm | W240xH1500 | 10000 | ≥10m | ≥160° | 230W | 650W |
| Invisible 06 | P16 | 0~4000 | ≥95% | 15x15mm | W240xH1500 | 4356 | ≥15m | ≥160° | 230W | 650W |
| Invisible 07 | P20 | 0~3000 | ≥98% | 20x20mm | W240xH1500 | 2500 | ≥20m | ≥160° | 160W | 480W |
| Invisible 08 | P30 | 0~1200 | ≥98% | 30x30mm | W240xH1500 | 1089 | ≥30m | ≥160° | 100W | 260W |
| Invisible 09 | Custom | Custom | Custom | Custom | Custom | Custom | Custom | ≥160° | Custom | Custom |
Technical Parameters
| Parameter | Value |
|---|---|
| Pixel specification | 1R1G1B |
| Pixel package | 1515 / 2020 |
| Color uniformity | ±0.003 |
| Grayscale level | 65536 levels |
| Refresh rate | 3840 |
| Brightness adjustment | 32-bit current gain |
| Drive method | Static state |
| Working temperature | -20℃~50℃ |
| Storage temperature | -40℃~70℃ |
| Working humidity | 10~90% |
| Storage humidity | 5~95% |
| Control method | Mobile phone/computer |
| Support video | Internal storage / U disk / synchronization |
| Screen material | Flexible substrate + organic resin |
