Technologie PDLC

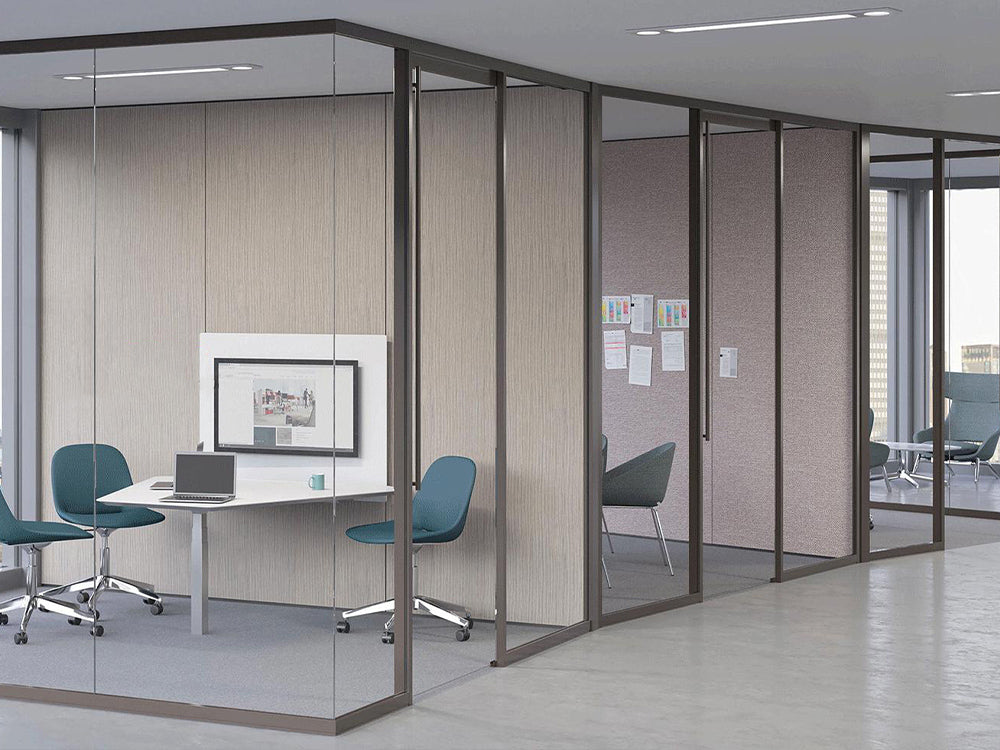

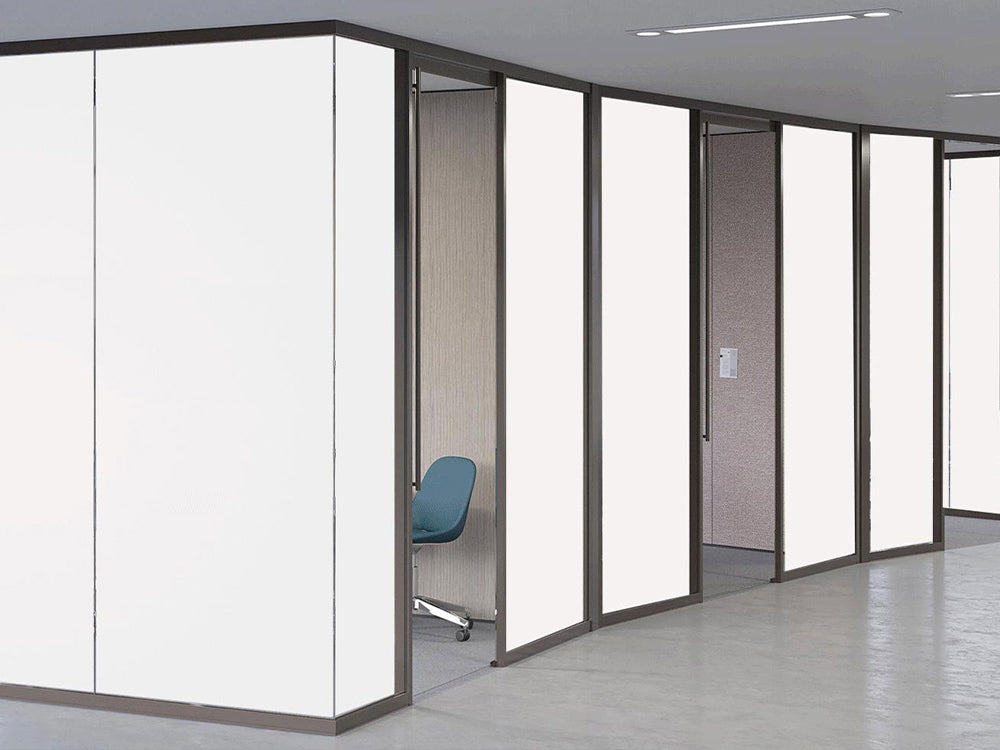

La technologie PDLC (cristal liquide dispersé en polymère) permet au verre de basculer entre les états transparents et opaques en appliquant un courant électrique.


2 types de produits
Films auto-adhésifs PDLC et produits en verre PDLC laminés ou soi-disant Smart Verre.


Self-Adhesive PDLC Smart Film Technical Specifications
Specification | Value | |
---|---|---|
Thickness | Total thickness (without protective film) | 0.47mm |
Sheet | Width | 1000, 1200, 1500, 1800 (mm) |
Length | According to customer requirements | |
Roll | Width | 1020, 1220, 1520, 1850 (mm) |
Length | ≤ 50m/Roll | |
Roll tube | Inner Diameter | 6 inches |
Operating voltage | ON | 60V |
Power consumption | ON | ≤ 5W/m² |
Viewing angle | ON | ≥ 160° |
UV blocking rate | OFF | ≥ 99% |
Infrared blocking rate | OFF | ≥ 60% |
Response time | OFF→ON | ≤ 30ms |
ON→OFF | ≤ 200ms | |
Operating temperature | -30°C ~ 95°C | |
Lifetime | 10 ~ 15 years | |
Switching times | ≥ 2 million times |
